Baden 36G Holz

Baden 36G; Schaub und Schaub- (ID = 304577) Radio

Baden 36G; Schaub und Schaub- (ID = 304571) Radio

Baden 36G; Schaub und Schaub- (ID = 304572) Radio

Baden 36G; Schaub und Schaub- (ID = 304573) Radio

Baden 36G; Schaub und Schaub- (ID = 304574) Radio

Baden 36G; Schaub und Schaub- (ID = 304575) Radio

Baden 36G; Schaub und Schaub- (ID = 304576) Radio

Baden 36G; Schaub und Schaub- (ID = 304578) Radio

Baden 36G; Schaub und Schaub- (ID = 5730) Radio
Baden 36G; Schaub und Schaub- (ID = 304570) Radio
Use red slider bar for more.
Baden 36G; Schaub und Schaub- (ID = 304570) Radio

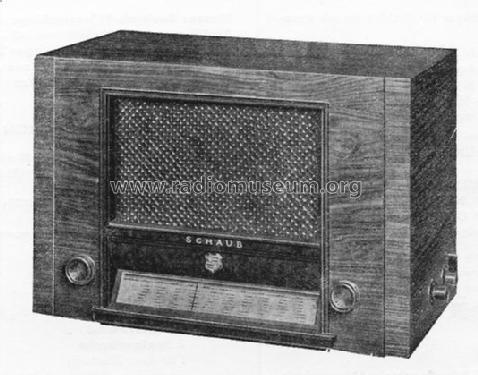

Schaub und Schaub-: Baden 36G [Radio] ID = 304570 535x419
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baden 36G Holz, Schaub und Schaub-Lorenz:

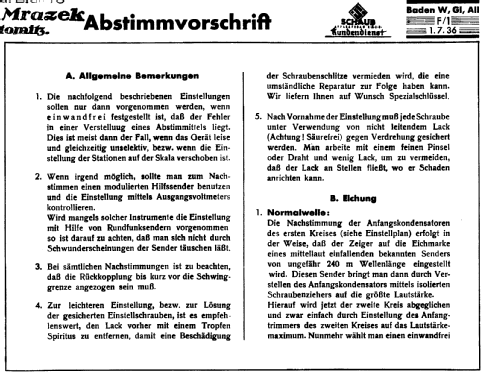

Bild aus Schaub-Kundendienstheft

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1884 BB1 BL2
Main principle TRF with diode detector; 1 Special; 1 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Baden 36G [Holz] - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 315 x 270 mm / 19.3 x 12.4 x 10.6 inch
Notes
Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Price in first year of sale 209.00 RM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
