• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1963–1965

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 126884

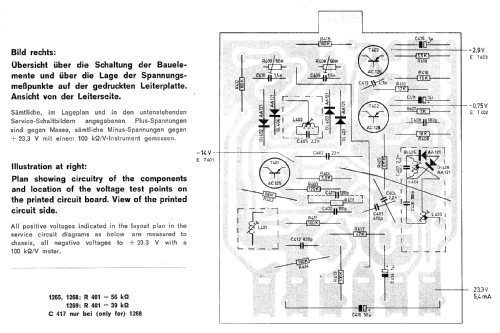

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• AC125 AC126 AC126 AA121

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 23,3 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: FM-Stereo-Decoder 1265, 1268, 1269 - Schaub und Schaub-Lorenz

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 55 x 65 x 28 mm / 2.2 x 2.6 x 1.1 inch

• Notes

• Aufsteckbaustein, Stereo-Indikator vorgesehen. SCA-Unterdrückung.

  6 Dioden AA112.

• Net weight (2.2 lb = 1 kg)
• 0.113 kg / 0 lb 4 oz (0.249 lb)

• Mentioned in
• Handbuch VDRG 1963/1964 (ohne Typenangabe)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
