Goldy 50 204012 poliert

Goldy 50 204012; Schaub und Schaub- (ID = 40569) Radio
Goldy 50 204012; Schaub und Schaub- (ID = 1856602) Radio Goldy 50 204012; Schaub und Schaub- (ID = 1856603) Radio
Goldy 50 204012; Schaub und Schaub- (ID = 1856604) Radio Goldy 50 204012; Schaub und Schaub- (ID = 1856605) Radio
Goldy 50 204012; Schaub und Schaub- (ID = 1856606) Radio Goldy 50 204012; Schaub und Schaub- (ID = 1856607) Radio
Goldy 50 204012; Schaub und Schaub- (ID = 1856608) Radio Goldy 50 204012; Schaub und Schaub- (ID = 1856609) Radio

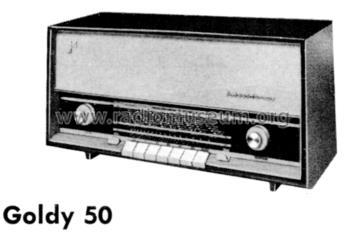

Goldy 50 204012; Schaub und Schaub- (ID = 40609) Radio
Use red slider bar for more.
Goldy 50 204012; Schaub und Schaub- (ID = 1856602) Radio
Schaub und Schaub-: Goldy 50 204012 [Radio] ID = 1856602 1400x847
Select picture or schematic to display from thumbnails on the right and click for download.
For model Goldy 50 204012 poliert, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Goldy 50 204012 [poliert] - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 240 x 185 mm / 18.9 x 9.4 x 7.3 inch
Notes Dioden: 2× AA113.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 398.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
