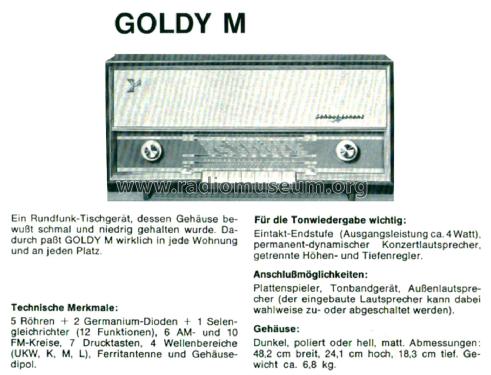

Goldy M 24054176/24054376; Schaub und Schaub- (ID = 2341510) Radio
Use red slider bar for more.
Goldy M 24054176/24054376; Schaub und Schaub- (ID = 689918) Radio
Schaub und Schaub-: Goldy M 24054176/24054376 [Radio] ID = 689918 800x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model Goldy M 24054176/24054376, Schaub und Schaub-Lorenz:
.radiowelt-austria.com

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Goldy M 24054176/24054376 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 240 x 185 mm / 18.9 x 9.4 x 7.3 inch
Notes Dioden: 2× AA113.
Gedruckte Schaltung.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
External source of data erb
Source of data Handbuch VDRG 1965/1966
