Illustraphon 2059 Luxus 70440
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1961/1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 105588
Ebay auction by user rupo64
Ebay auction by user rupo64
Ebay auction by user rupo64
Ebay auction by user rupo64

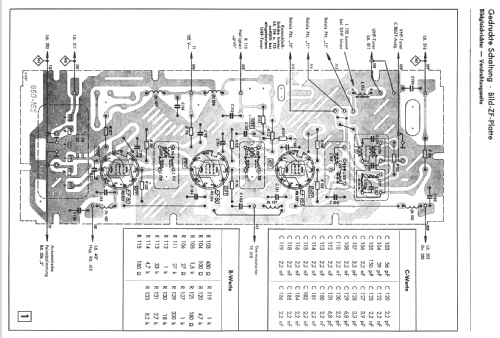

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- AW59-90
- Main principle
- Superheterodyne (common); ZF/IF 5500/38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Illustraphon 2059 Luxus 70440 - Schaub und Schaub-Lorenz
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 900 x 915 x 435 mm / 35.4 x 36 x 17.1 inch
- Notes
- FS-Bänder: I/III und IV/V.
Technische Daten wie Weltspiegel 2059 Luxus, jedoch Standgerät mit verschließbaren Einschiebetüren.
- Net weight (2.2 lb = 1 kg)
- 52 kg / 114 lb 8.6 oz (114.537 lb)
- Price in first year of sale
- 1,425.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
