Illustraphon 953 54440/54441/54442/54443/54444/54446
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1959/1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 101664

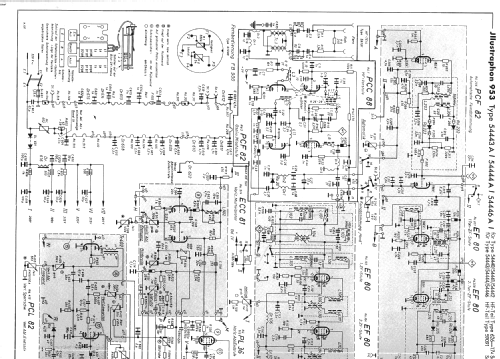

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- AW53-88
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Illustraphon 953 54440/54441/54442/54443/54444/54446 - Schaub und Schaub-Lorenz
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 640 x 965 x 455 mm / 25.2 x 38 x 17.9 inch
- Notes
-
Technische Daten wie Weltspiegel 943, jedoch mit 53-cm-Bildröhre im Standgehäuse auf Füßen.
Für dieses Gerät gab es einen UHF-Einbausatz Nr. 54992. Der Einbau ist in der Service-Information 21 beschrieben.
- Price in first year of sale
- 1,168.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
