Neckar F(W)

Neckar F; Schaub und Schaub- (ID = 49765) Radio

Neckar F; Schaub und Schaub- (ID = 49766) Radio

Neckar F; Schaub und Schaub- (ID = 304525) Radio

Neckar F; Schaub und Schaub- (ID = 304521) Radio

Neckar F; Schaub und Schaub- (ID = 304522) Radio

Neckar F; Schaub und Schaub- (ID = 304523) Radio

Neckar F; Schaub und Schaub- (ID = 304524) Radio

Neckar F; Schaub und Schaub- (ID = 5797) Radio
Neckar F; Schaub und Schaub- (ID = 231330) Radio Neckar F; Schaub und Schaub- (ID = 231331) Radio
Neckar F; Schaub und Schaub- (ID = 742842) Radio Neckar F; Schaub und Schaub- (ID = 742843) Radio
Neckar F; Schaub und Schaub- (ID = 742844) Radio Neckar F; Schaub und Schaub- (ID = 742845) Radio

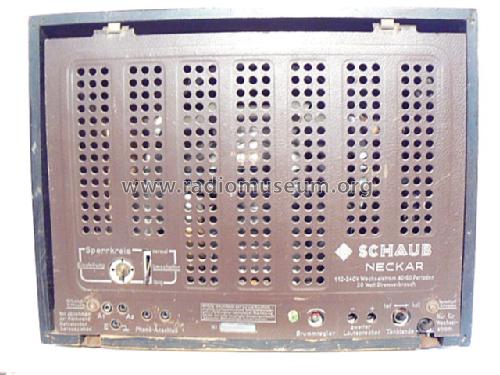

Neckar F; Schaub und Schaub- (ID = 742846) Radio
Use red slider bar for more.
Neckar F; Schaub und Schaub- (ID = 231330) Radio
Schaub und Schaub-: Neckar F [Radio] ID = 231330 924x694
Select picture or schematic to display from thumbnails on the right and click for download.
For model Neckar F(W), Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 RES164 RGN564
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt

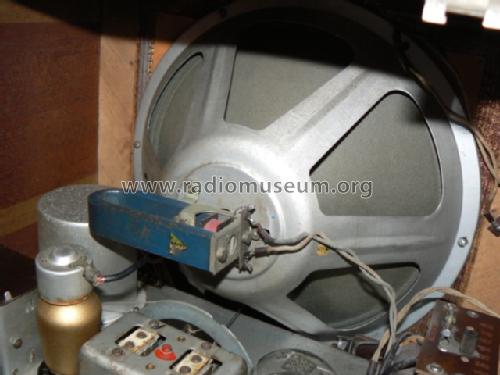

Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Neckar F - Schaub und Schaub-Lorenz
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 335 x 280 mm / 17.3 x 13.2 x 11 inch
Notes Uhrenskala
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Schaub und Schaub-Lorenz
Here you find 930 models, 789 with images and 647 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
