• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1961–1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5994

Click on the schematic thumbnail to request the schematic as a free document.

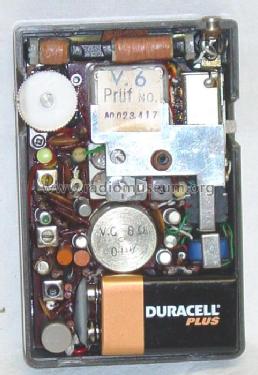

• Number of Transistors
• 8

• Semiconductors
• 2SA157 2SA153 2SA155 2SA156 2SB110 2SB112 2SB112 2SB112 SD46

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.12 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Pony - ML 11085 - Schaub und Schaub-Lorenz

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 111 x 72 x 32 mm / 4.4 x 2.8 x 1.3 inch

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Price in first year of sale
• 125.00 DM

• Source of data
• Handbuch VDRG 1962/1963 / Radiokatalog Band 1, Ernst Erb

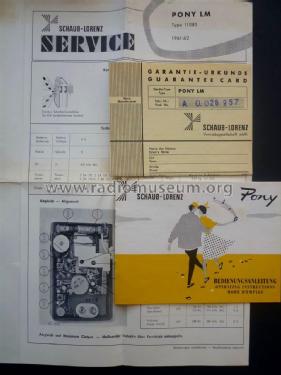

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 972 models, 828 with images and 691 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
