Pony S 52330101

Pony S 52330101; ITT Schaub-Lorenz (ID = 90190) Radio

Pony S 52330101; ITT Schaub-Lorenz (ID = 90191) Radio

Pony S 52330101; ITT Schaub-Lorenz (ID = 90192) Radio

Pony S 52330101; ITT Schaub-Lorenz (ID = 90193) Radio

Pony S 52330101; ITT Schaub-Lorenz (ID = 1881912) Radio
Pony S 52330101; ITT Schaub-Lorenz (ID = 620823) Radio Pony S 52330101; ITT Schaub-Lorenz (ID = 89078) Radio
Pony S 52330101; ITT Schaub-Lorenz (ID = 1070140) Radio Pony S 52330101; ITT Schaub-Lorenz (ID = 1070141) Radio
Pony S 52330101; ITT Schaub-Lorenz (ID = 1891319) Radio Pony S 52330101; ITT Schaub-Lorenz (ID = 2391457) Radio
Use red slider bar for more.

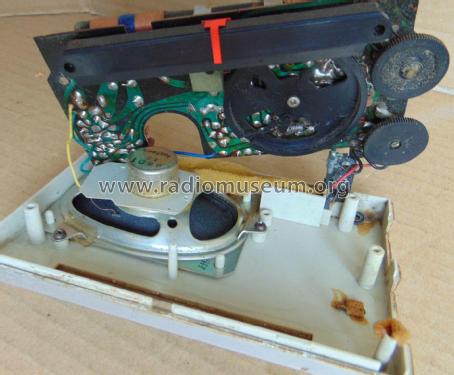

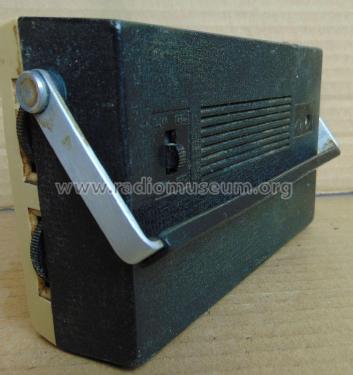

Pony S 52330101; ITT Schaub-Lorenz (ID = 620823) Radio
ITT Schaub-Lorenz: Pony S 52330101 [Radio] ID = 620823 500x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pony S 52330101, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: CS9018 CS1312 CS9018 CS1312 CS1312 BT1 2SD104 2SB364 1N60 CD0000
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Pony S 52330101 - ITT Schaub-Lorenz
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 155 x 95 x 45 mm / 6.1 x 3.7 x 1.8 inch
Notes MW: 510 - 1620 kHz
LW: 145 - 260 kHz
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers. (ITT/Schaub-Lorenz/Graetz-Rundfunkgeräte-Service 1967/68)
