• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5969

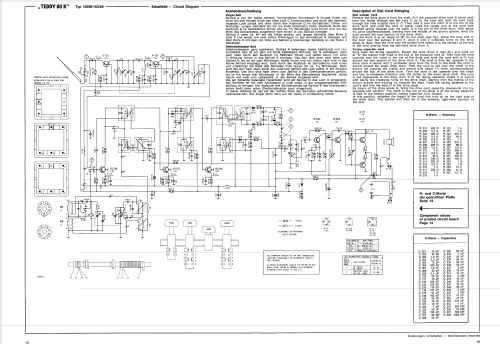

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Teddy 80K 140261 - Schaub und Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 232 x 145 x 73 mm / 9.1 x 5.7 x 2.9 inch

• Notes
• Transistoren: AF124, AF125, 2× 652366, 971523, BC108A, BC108B, AC117, AC175.
  Netzbetrieb mit zusätzlichem Netzteil möglich.
  1402-61 = weinrot.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb

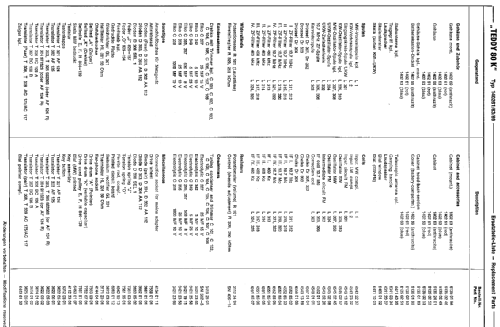

• Literature/Schematics (1)
• -- Original-techn. papers.
