Tiny 4 Band Radio 109B (dial shows DLF) bilingual LW/GO, MW/PO
Use red slider bar for more.

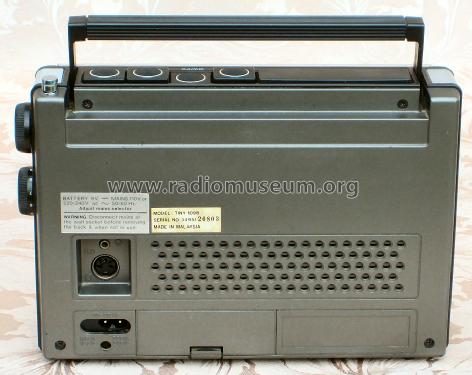

ITT-KB; Foots Cray,: Tiny 4 Band Radio 109B [Radio] ID = 1206578 888x933
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
Year:
1978 ?
|
Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 5: CS9016 CS1502 CS1502 CS9016 CS9015 TBA820 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 468/10700 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Line / Batteries (any type) / 110; 220-240 / C: 6 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 0.8 W (unknown quality) |
| from Radiomuseum.org | Model: Tiny 4 Band Radio 109B [bilingual LW/GO, MW/PO] - ITT-KB; Foots Cray, Kent; ITT |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 255 x 175 x 70 mm / 10 x 6.9 x 2.8 inch |
| Notes | Same chassis as Tiny 109B by ITT-Schaub-Lorenz. Made in Malaysia for the UK market. 1 Integrated Circuit. Loudspeaker 12 x 8 cm. Has no FTZ qualification. LW dial shows DLF (not Deutschlf.). |
| Net weight (2.2 lb = 1 kg) | 1.5 kg / 3 lb 4.9 oz (3.304 lb) |
Model page created by Werner Wussow. See "Data change" for further contributors.
