Trilogie 4059D Stereo
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1963/1964
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 108575

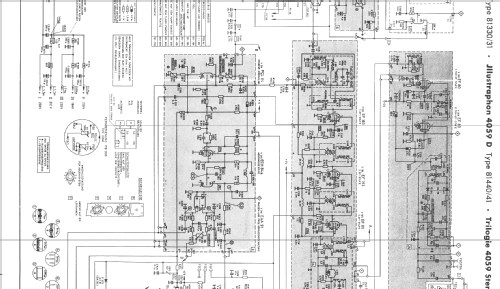

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer); Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Trilogie 4059D Stereo - Schaub und Schaub-Lorenz
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1355 x 900 x 460 mm / 53.3 x 35.4 x 18.1 inch
- Notes
- Fernseh-Chassis = Weltspiegel 4059D;
Rundfunk-Chassis = 93243;
Phono-Chassis = Dual 1008A.
- Net weight (2.2 lb = 1 kg)
- 78.7 kg / 173 lb 5.6 oz (173.348 lb)
- Price in first year of sale
- 2,248.00 DM
- Source of data
- Handbuch VDRG 1963/1964
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
