FM-Stereo-Decoder 790901 & 790902

FM-Stereo-Decoder 790901 & 790902; Schaub und Schaub- (ID = 41581) mod-past25

FM-Stereo-Decoder 790901 & 790902; Schaub und Schaub- (ID = 41582) mod-past25

FM-Stereo-Decoder 790901 & 790902; Schaub und Schaub- (ID = 41584) mod-past25
FM-Stereo-Decoder 790901 & 790902; Schaub und Schaub- (ID = 41585) mod-past25
Use red slider bar for more.
FM-Stereo-Decoder 790901 & 790902; Schaub und Schaub- (ID = 41585) mod-past25
Schaub und Schaub-: FM-Stereo-Decoder 790901 & 790902 [mod-past25] ID = 41585 373x321
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-Stereo-Decoder 790901 & 790902, Schaub und Schaub-Lorenz:

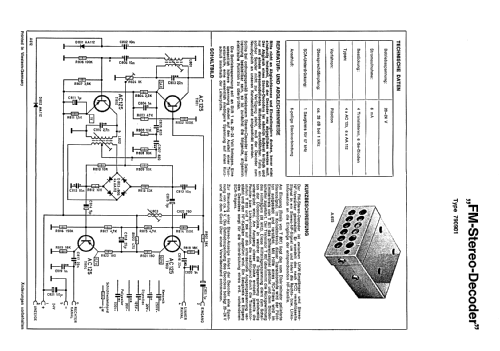

Modellbild aus Serviceanleitung

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1965/1966 Category: Radio module post 1925 (not a part, not a key)
Semiconductors (the count is only for transistors) 4: AC125 AC125 AC125 AC125
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM-Stereo-Decoder 790901 & 790902 - Schaub und Schaub-Lorenz
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 55 x 65 x 28 mm / 2.2 x 2.6 x 1.1 inch
Notes Aufsteckbaustein, Stereo-Indikator vorgesehen.
External source of data Erb
Source of data Handbuch VDRG 1963/1964
