Weekend 57 U Type 9614

Weekend 57 U Type 9614; Schaub und Schaub- (ID = 2355080) Radio
Use red slider bar for more.
Weekend 57 U Type 9614; Schaub und Schaub- (ID = 2355080) Radio

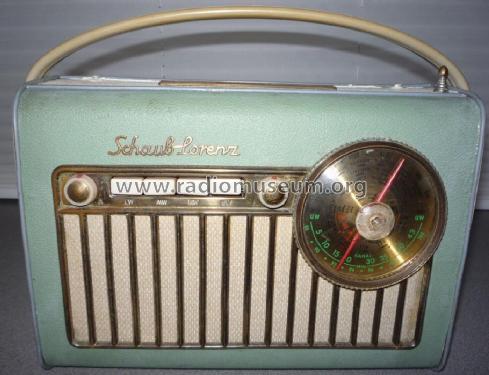

Schaub und Schaub-: Weekend 57 U Type 9614 [Radio] ID = 2355080 564x322
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weekend 57 U Type 9614, Schaub und Schaub-Lorenz:
Bild von Wolfgang Bauer

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: DF97 DK96 DF96 DF96 DAF96 DL96
schematic requested
Main principle Superhet, double/triple conversion; ZF/IF 460/10700/6700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 127; 155; 220 / 1,5-DEAC D2 oder 1,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: Weekend 57 U Type 9614 - Schaub und Schaub-Lorenz
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 292 x 210 x 118 mm / 11.5 x 8.3 x 4.6 inch
Notes

Siehe auch:
 ► Weekend 57U Type 9014
 ► Weekend 57U Type 9314
 ► Weekend 57U Type 9414
 ► Weekend 57U Type 9514

Net weight (2.2 lb = 1 kg) 4.350 kg / 9 lb 9.3 oz (9.581 lb)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
