Weekend Automatik T40K

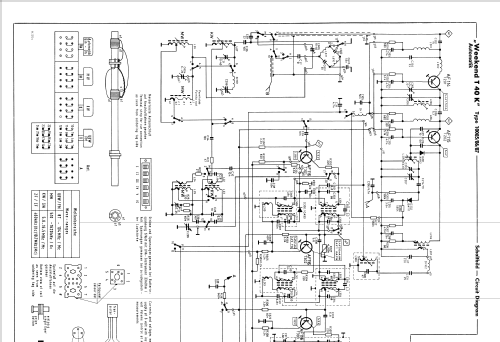

Weekend Automatik T40K; Schaub und Schaub- (ID = 39719) Radio

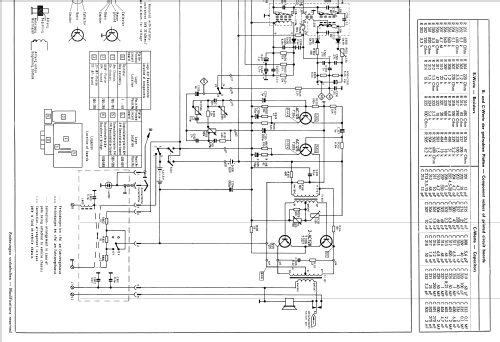

Weekend Automatik T40K; Schaub und Schaub- (ID = 39720) Radio

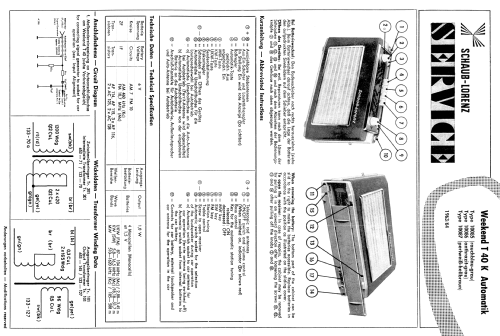

Weekend Automatik T40K; Schaub und Schaub- (ID = 39727) Radio

Weekend Automatik T40K; Schaub und Schaub- (ID = 39725) Radio

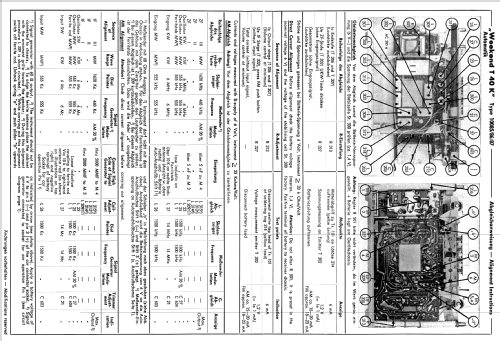

Weekend Automatik T40K; Schaub und Schaub- (ID = 39721) Radio

Weekend Automatik T40K; Schaub und Schaub- (ID = 39722) Radio

Weekend Automatik T40K; Schaub und Schaub- (ID = 39723) Radio

Weekend Automatik T40K; Schaub und Schaub- (ID = 39726) Radio

Weekend Automatik T40K; Schaub und Schaub- (ID = 2050920) Radio

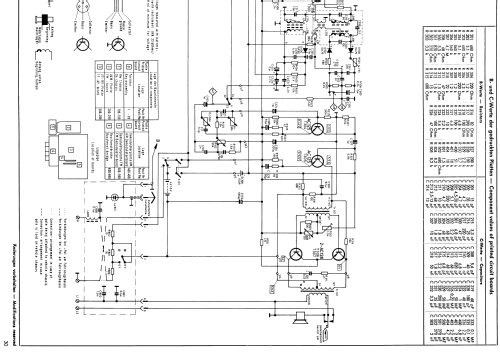

Weekend Automatik T40K; Schaub und Schaub- (ID = 2050921) Radio
Weekend Automatik T40K; Schaub und Schaub- (ID = 1838176) Radio Weekend Automatik T40K; Schaub und Schaub- (ID = 33418) Radio
Weekend Automatik T40K; Schaub und Schaub- (ID = 361148) Radio Weekend Automatik T40K; Schaub und Schaub- (ID = 361150) Radio

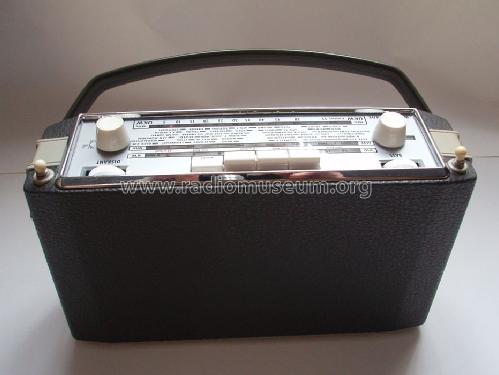

Weekend Automatik T40K; Schaub und Schaub- (ID = 361151) Radio Weekend Automatik T40K; Schaub und Schaub- (ID = 361155) Radio
Weekend Automatik T40K; Schaub und Schaub- (ID = 361172) Radio Weekend Automatik T40K; Schaub und Schaub- (ID = 521360) Radio
Weekend Automatik T40K; Schaub und Schaub- (ID = 579346) Radio Weekend Automatik T40K; Schaub und Schaub- (ID = 579347) Radio
Use red slider bar for more.
Weekend Automatik T40K; Schaub und Schaub- (ID = 1838176) Radio
Schaub und Schaub-: Weekend Automatik T40K [Radio] ID = 1838176 1081x707
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weekend Automatik T40K, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 AC125 AC125 AC128 AC128
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Weekend Automatik T40K - Schaub und Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 175 x 80 mm / 10.6 x 6.9 x 3.1 inch
Notes Schaub-Lorenz Weekend Automatik T40K;
UKW bis 104 MHz, KW: ~6 - 16 MHz, Automatik/AFC Taste, Bass & Diskant/Höhen Regler, zwei Teleskop Antennen, vorbereitet für KFZ Betrieb über externe Fahrzeughalterung, made in Germany.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 269.00 DM
Collectors' prices
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1963
