Weekend Automatik T40L Type 10080, 10081, 10082

• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6003

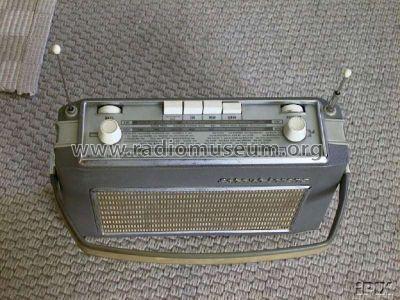

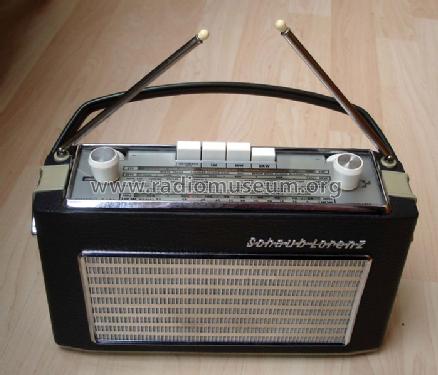

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 AC125 AC125 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / D: 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Weekend Automatik T40L Type 10080, 10081, 10082 - Schaub und Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 175 x 80 mm / 10.6 x 6.9 x 3.1 inch

• Notes

• Schaub-Lorenz Weekend Automatik T40L;
  UKW bis 104 MHz, Automatik/AFC Taste, Bass & Diskant/Höhen Regler, zwei Teleskop Antennen, vorbereitet für KFZ Betrieb über externe Fahrzeughalterung, Made in Germany.

  Basisspannungs-Stabilisierung mit fest eingebauter DEAC-Zelle (NiCd-Akku).

  Gehäuse-Ausführung in drei Farben:

  • Type 10080 rauchblau-grau
  • Type 10081 anthrazit-grau
  • Type 10082 perlweiss-hellbraun

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Price in first year of sale
• 269.00 DM

• Source of data
• Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Handbuch RFP 1963

• Literature/Schematics (1)
• -- Original-techn. papers.
