Weekend TE900

Schaub und Schaub-Lorenz

  • Year
  • 1968
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 116939

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

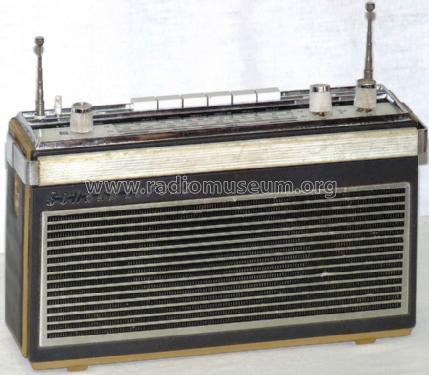

  • Model: Weekend TE900 - Schaub und Schaub-Lorenz
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 280 x 170 x 80 mm / 11 x 6.7 x 3.1 inch
  • Notes
  • Gehäuse-Farbvarianten: 120461 = weinrot, 120463 = royalblau, 120469 = anthrazit. Getrennte Höhen/Tiefen-Regler; Anschluß für Autobetrieb, Kopfhörer, und ext. Netzgerät möglich. Ovallautsprecher 10,5 x 15,5 cm.
  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • Mentioned in
  • Schaub Lorenz Koffergeräte-Service 1965/68
