Weltrevue 6065S 43174 Ch= 6030
Schaub und Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- Schaub und Schaub-Lorenz
- Year
- 1965/1966
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 111839
Q: Schaub-Loenz, Produkt-Katalog '65
Q: Schaub-Lorenz, Produkt-Katalog '65

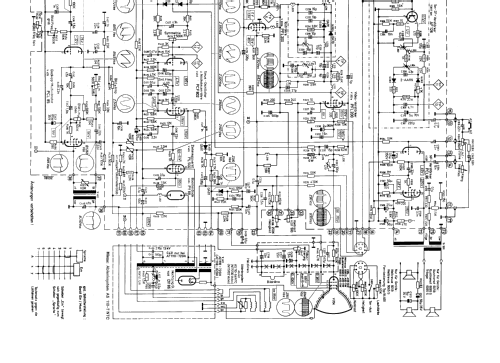

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 3
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Weltrevue 6065S 43174 Ch= 6030 - Schaub und Schaub-Lorenz
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 770 x 540 x 440 mm / 30.3 x 21.3 x 17.3 inch
- Notes
-
Schaub-Lorenz, Weltrevue 6065S Typ 43174
VHF/UHF
Die kabelgebundene Fernbedienung typ 94400 enthält vier Einstellregler für Lautstärke, Helligkeit, Ton (Ein / Aus) und Bildkontrast.
- Net weight (2.2 lb = 1 kg)
- 32 kg / 70 lb 7.8 oz (70.485 lb)
- Source of data
- Handbuch VDRG 1965/1966
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
