HiFi Stereo Combination System MIDI 2265 CD

• Country
• Germany

• Manufacturer / Brand
• Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim

• Year
• 1989 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 279830

• Picture

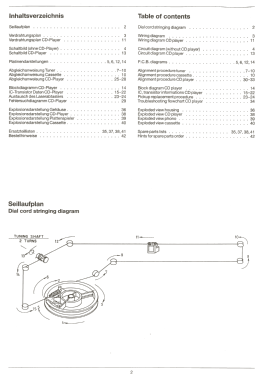

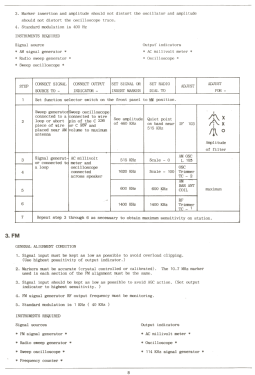

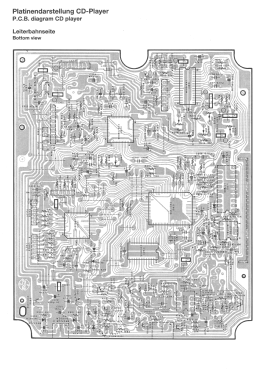

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: HiFi Stereo Combination System MIDI 2265 CD - Schneider Rundfunkwerke,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 365 x 340 x 380 mm / 14.4 x 13.4 x 15 inch

• Notes

• Radio mit CD-Player, Plattenspieler und 2 Kassettenteile, u.a. zum Überspielen von Kassetten, 3- Band Equalizer.

  Wie man auf 2 Bildern erkennen kann, stammen das Abtastsystem und die Abtastnadel  des Plattenspielers von einer japanischen Firma, " FLE ".

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
