Midi 2220

• Country
• Germany

• Manufacturer / Brand
• Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim

• Year
• 1995 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234685

• Picture

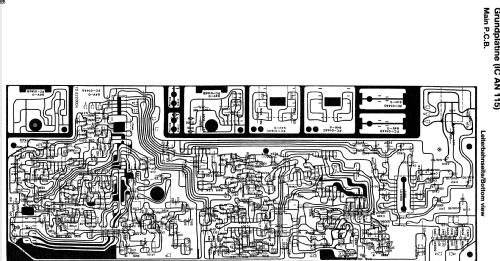

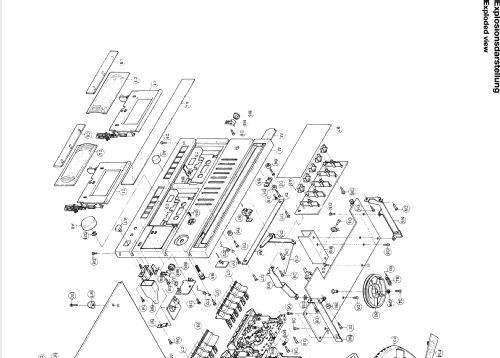

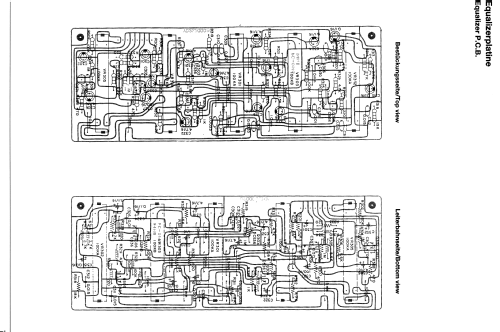

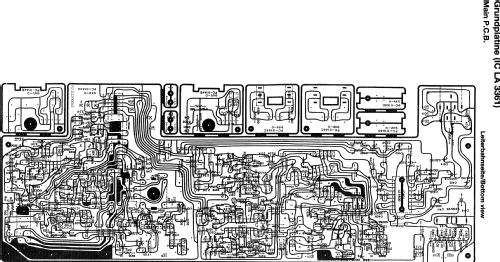

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Midi 2220 - Schneider Rundfunkwerke,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 350 x 280 x 350 mm / 13.8 x 11 x 13.8 inch

• Notes

• Midi 2220 Stereo Combination System,  Analog-Skala, 3-Band Equalizer, Doppel-Cassette-Deck, Plattenspieler (kein Wechsler) mit 33 und 45 Rpm, Anschluß für CD-Player, Lautsprecherboxen extern angeschlossen.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
