• Year
  • 1986/1987
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 174122

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Record Player + Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

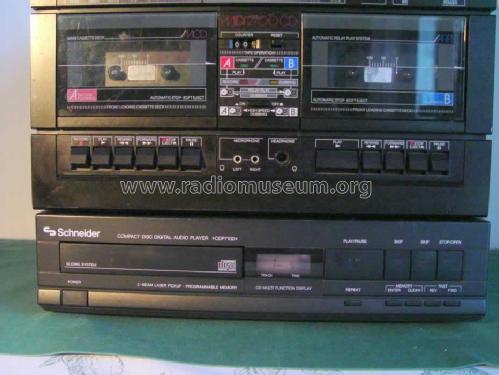

  • Model: Midi 2700CD - Schneider Rundfunkwerke,
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 350 x 405 x 345 mm / 13.8 x 15.9 x 13.6 inch
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Jaroslav Hlavaty. See "Data change" for further contributors.
