• Year
  • 1977 ?
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 260189

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 50 W (80 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Speaker System LB 134 - Schneider Rundfunkwerke,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 450 x 250 x 205 mm / 17.7 x 9.8 x 8.1 inch
  • Notes
  • Schneider HiFi 3-Wege Speaker System Model LB 134.
    Nennbelastbarkeit: 50 Watt
    Musikbelastbarkeit: 80 Watt
    38 - 25000Hz, Impedanz 4 Ohm
    Tieftöner 200mm, Mitteltöner und Ambi-Sound Hochtöner
    Gehäusevolumen: 15 ltr.
    Gehäuse: Nussbaum natur oder Schleiflack weiss (geschlossen)

  • Mentioned in

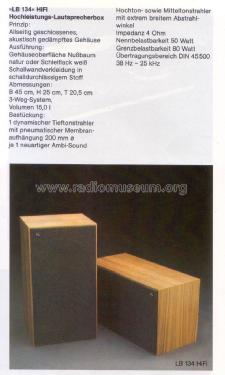

  • -- Original prospect or advert (Schneider HiFi-Stereo-Programm '77/78 Seite 14)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
