- Country
- Germany
- Manufacturer / Brand
- Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim
- Year
- 1976 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 258732

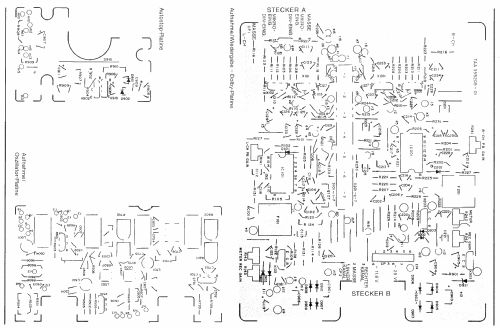

Bild aus Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: TDS10 - Schneider Rundfunkwerke,
- Shape
- Chassis only or for «building in»
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Daniel Doll. See "Data change" for further contributors.
