TDS 15

Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim

Data
Forum
Pictures
Collections

  • Year
  • 1979 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 290486

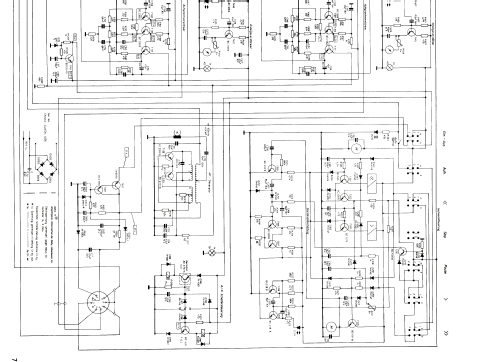

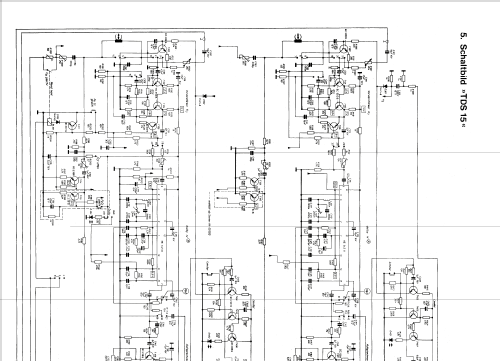

Click on the schematic thumbnail to request the schematic as a free document.

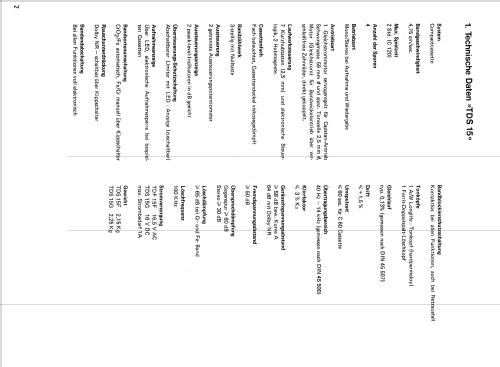

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Other, details in remarks or not known.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TDS 15 - Schneider Rundfunkwerke,
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Schneider  TDS 15  2 Motor Cassettendeck
    Von oben bedienbarer Cassettenbaustein mit elektronisch gesteuerten Kurzhubtasten
    zum Einbau in Compaktanlagen. 2 Motoren und Hubmagnete, Dolby Rauschunterdrückung
    Stromversorgung TDS 15 F = 16, 5 V AC     TDS 15 G =16 V DC
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Holger Ortmann. See "Data change" for further contributors.
