• Country
• Germany

• Manufacturer / Brand
• Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim

• Year
• 1990 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137039

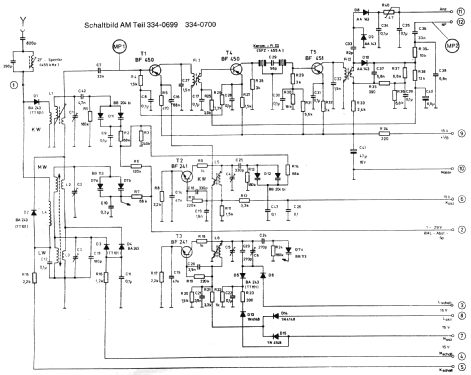

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Team 6030 T - Schneider Rundfunkwerke,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 390 x 135 x 380 mm / 15.4 x 5.3 x 15 inch

• Notes
• HiFi-Tuner Team 6030 T, drei einstellbare FM- und vier AM-Speicher, schaltbarer AFC, analoge Signalanzeige, Frequenzlage- und Tuning-Anzeige, Abstimmung manuell, Stereoanzeige-LED, Tuningfunktion, 5 pol. DIN-Ausgang.

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.

• Other Models

• Here you find 158 models, 133 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim
