• Country
• Germany

• Manufacturer / Brand
• Schneider Rundfunkwerke, Electronics (Schneider/TCL); Türkheim

• Year
• 1984/1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106244

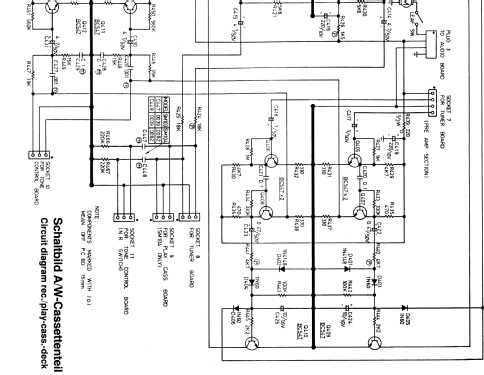

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 36

• Semiconductors
• 2SC535 2SC1417 2SC461 2SC732 2SD471 BC547 2SC1317 1N60 1N4148 1N4002 µPC587 µPC1018 TDA2030

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Vertical Audioline VAL1002 - Schneider Rundfunkwerke,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 400 x 480 x 120 mm / 15.7 x 18.9 x 4.7 inch

• Notes
• Halbleiterliste: nur einmal pro Typ.

  VAL = Vertical Audio Line. Vertikal eingebauter Tangential-Plattenspieler von BSR (Monarch, GB) mit diskret bestückter Steuerelektronik (nicht in Halbleiterliste enthalten).
  Zwei Kassettendecks: Tape 1 für Aufnahme und Wiedergabe, Tape 2 nur für Wiedergabe; High-Speed Dubbing, METAL-vorbereitet, Noise Reduction.
  Klangregelung in Equalizer-Style.
  Technisch baugleich mit SM104.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Literature/Schematics (1)
• Historische Radios Band II (Seite 133)

• Author
• Model page created by Andreas Sommerer. See "Data change" for further contributors.
