• Country
• France

• Manufacturer / Brand
• Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

• Year
• 1975 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 242671

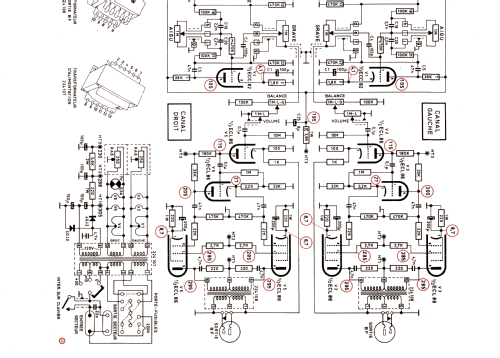

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC82 ECC82 ECL86 ECL86 ECL86 ECL86

• Number of Transistors

• Semiconductors
• 40J2 40J2

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (10 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Amplificateur Stéréophonique F36 - Schneider Frères, Radio-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 400 x 300 x 130 mm / 15.7 x 11.8 x 5.1 inch

• Notes

• Entrées: radio, magnétophone, PU (piézo). Bande de passante de 20 Hz à 30 kHz. Redresseur de l'alimentation: 2 x 40J2.

  Montage sur circuit imprimé. Consommation 85 VA, 68 W.







• Net weight (2.2 lb = 1 kg)
• 8.1 kg / 17 lb 13.5 oz (17.841 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Jean Marchal. See "Data change" for further contributors.
