- Country
- France
- Manufacturer / Brand
- Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
- Year
- 1973 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 201153
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common); ZF/IF 457 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Dry Batteries / 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

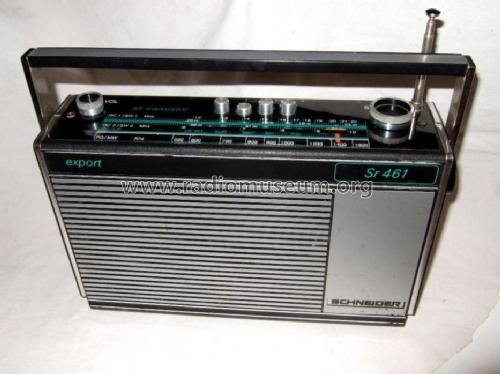

- Model: Export SR-461 - Schneider Frères, Radio-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 180 x 70 mm / 10.6 x 7.1 x 2.8 inch
- Notes
-
Equipé de 3 transistors et un CI TAA 611B, antenne télescopique, & prise antenne extérieure. HP elliptique 10x 16 cm, plastique moulé.
Made in Tunisia
- Net weight (2.2 lb = 1 kg)
- 1.250 kg / 2 lb 12.1 oz (2.753 lb)
- Author
- Model page created by Bekir Yurdakul. See "Data change" for further contributors.
