Ferya G85

Ferya G85; Schneider Frères, (ID = 2430100) Radio

Ferya G85; Schneider Frères, (ID = 2430109) Radio

Ferya G85; Schneider Frères, (ID = 2430112) Radio

Ferya G85; Schneider Frères, (ID = 2430113) Radio

Ferya G85; Schneider Frères, (ID = 2430115) Radio
Ferya G85; Schneider Frères, (ID = 2310017) Radio Ferya G85; Schneider Frères, (ID = 2310018) Radio
Ferya G85; Schneider Frères, (ID = 2310019) Radio Ferya G85; Schneider Frères, (ID = 1637546) Radio
Ferya G85; Schneider Frères, (ID = 1637548) Radio Ferya G85; Schneider Frères, (ID = 1637551) Radio
Use red slider bar for more.
Ferya G85; Schneider Frères, (ID = 2310017) Radio
Schneider Frères,: Ferya G85 [Radio] ID = 2310017 1400x680
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ferya G85, Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

Country:  France
Manufacturer / Brand:  Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: AF126 AF127 AF127 AF125 MO1 or. 2G109 AF125 AF128 AF128 OA90 OA90
Main principle Superheterodyne (common); ZF/IF 457 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Ferya G85 - Schneider Frères, Radio-
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 180 x 80 mm / 11.2 x 7.1 x 3.1 inch
Notes

3 gammes d'ondes: PO de 184 à 575 m, GO de 1100 à 1960 m, et OC de 23 à 52 m. Clavier 4 touches dont commutateur antenne. Cadre antiparasite ferrite de 200 mm, antenne télescopique pour OC. Prises antenne-auto ou antenne extérieure et écouteur ou HP extérieur. HP elliptique de 12 x 19 cm, Z = 20 Ω.

Coffret bois avec panneau arrière en matière plastique.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

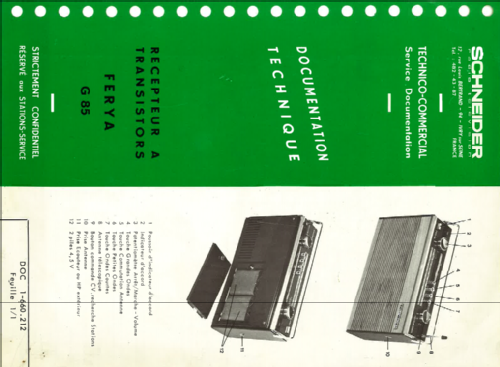

Mentioned in -- Original-techn. papers.

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
