• Country
• France

• Manufacturer / Brand
• Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71023

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EF89 EBC81 6AQ5 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

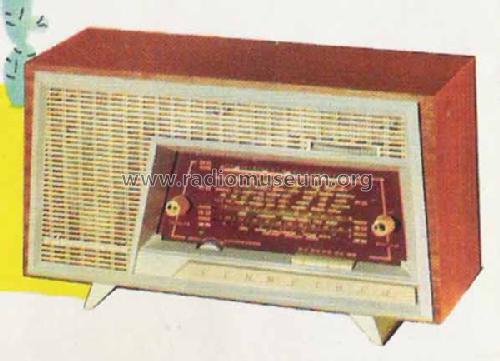

• Model: Mambo [sans œil magique] - Schneider Frères, Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 495 x 290 x 190 mm / 19.5 x 11.4 x 7.5 inch

• Notes

• 4 gammes d'ondes: OC 16 à 51 m, PO 181 à 582 m, GO 1000 à 2000 m, bande étalée 46,5 à 51 m. Cadre ferroxcube double orientable, antenne OC incorporé. Bobinages tropicalisés. HP elliptique 12 x 19 cm.

  Coffret sapelli satiné.

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
