Puck

Puck ; Schneider Frères, (ID = 1331089) Radio

Puck ; Schneider Frères, (ID = 1331090) Radio
Puck ; Schneider Frères, (ID = 1204016) Radio Puck ; Schneider Frères, (ID = 1204017) Radio
Puck ; Schneider Frères, (ID = 1204018) Radio Puck ; Schneider Frères, (ID = 1977003) Radio
Puck ; Schneider Frères, (ID = 1977010) Radio
Use red slider bar for more.
Puck ; Schneider Frères, (ID = 1204016) Radio
Schneider Frères,: Puck [Radio] ID = 1204016 900x768
Select picture or schematic to display from thumbnails on the right and click for download.

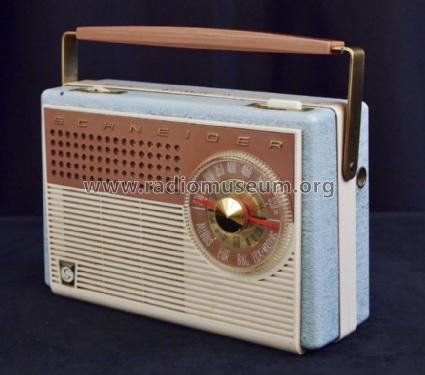

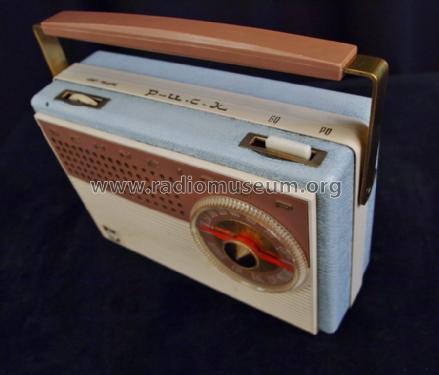

For model Puck, Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

Country:  France
Manufacturer / Brand:  Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC75 OC72 OC72 OA85 OA79
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Puck - Schneider Frères, Radio-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 225 x 145 x 72 mm / 8.9 x 5.7 x 2.8 inch
Notes

2 gammes PO et GO commutées par touche à translations. Cadre ferrinox de 19 cm. Sélectivité variable automatique. Prise antenne voiture.

Coffret gainé plastique rouge ou jaune.

Prix TTC, port et piles comprises.

Voir aussi modèle Puck précedente.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Price in first year of sale 206.00 FRF
Mentioned in -- Original prospect or advert (Catalogue 10/1962 pour la Belgique)

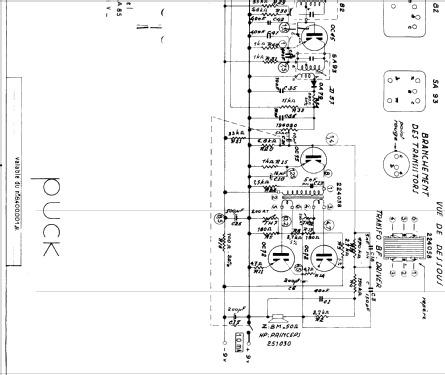

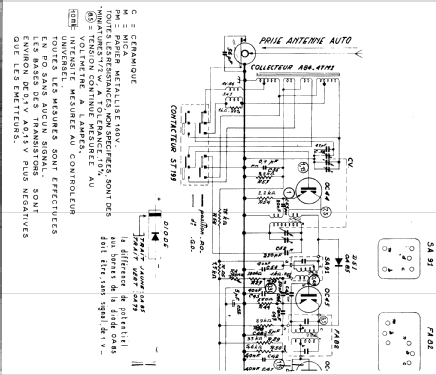

Literature/Schematics (1) Le Haut-Parleur (No. 1056, 30.10.1962)

Model page created by Bekir Yurdakul. See "Data change" for further contributors.



All listed radios etc. from Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine
Here you find 247 models, 204 with images and 129 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
