• Country
• France

• Manufacturer / Brand
• Schneider (Frères, Radio-Télévision); Paris, Ivry / Seine

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71021

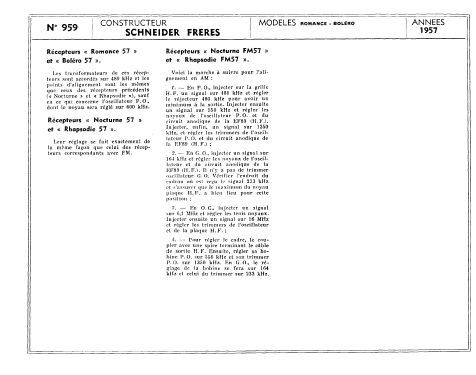

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6AJ8 or ECH81 6N8 or EBF80 6AU6 6AQ5 EM81 6V4 or EZ80

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

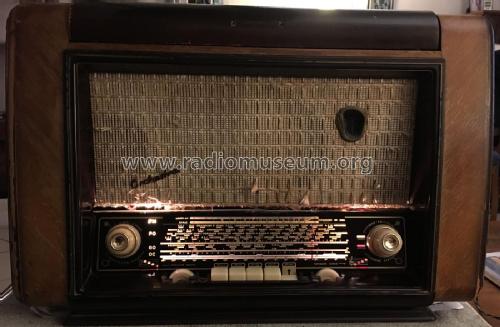

• Model: Romance 57 - Schneider Frères, Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 485 x 335 x 232 mm / 19.1 x 13.2 x 9.1 inch

• Notes

• Lautsprecher: 23x15cm

  Beschriftung der Tastenbelegung:
  PU, GO (Antenne), GO (Cadre), PO (Antenne), PO (Cadre), OC,
  BE (Bande Etalee = gespreiztes 49m-Band).
  Bei GO und PO muß der Antennenstecker der gedrückten Taste entsprechen.
  Blauer Bananenstecker = Cadre.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• External source of data
• Serge Laffont/Martin Renoth

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
