SO1A

SO1A; Schneider-Opel AG, (ID = 784652) Radio
SO1A; Schneider-Opel AG, (ID = 517024) Radio SO1A; Schneider-Opel AG, (ID = 1423106) Radio
SO1A; Schneider-Opel AG, (ID = 369811) Radio SO1A; Schneider-Opel AG, (ID = 1423108) Radio
SO1A; Schneider-Opel AG, (ID = 1423109) Radio SO1A; Schneider-Opel AG, (ID = 2399) Radio
SO1A; Schneider-Opel AG, (ID = 1423110) Radio SO1A; Schneider-Opel AG, (ID = 150271) Radio
SO1A; Schneider-Opel AG, (ID = 369807) Radio SO1A; Schneider-Opel AG, (ID = 150272) Radio
Use red slider bar for more.
SO1A; Schneider-Opel AG, (ID = 517024) Radio

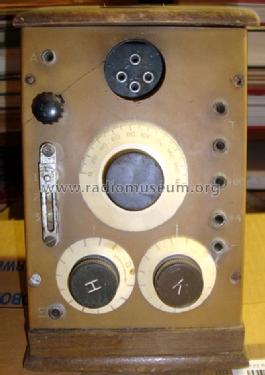

Schneider-Opel AG,: SO1A [Radio] ID = 517024 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model SO1A, Schneider-Opel AG, Radiowerke; Frankfurt a.M., später Berlin

Country:  Germany
Manufacturer / Brand:  Schneider-Opel AG, Radiowerke; Frankfurt a.M., später Berlin
Brand

Mars
Year: 1924–1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: RE79
Main principle TRF without regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 4 & 60 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: SO1A - Schneider-Opel AG, Radiowerke;
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, slant panel.
Notes ohne Steckspule; Konstr. Dr. P.Lertes; passender Verstärker SO1N.
Price in first year of sale 75.00 RM
External source of data E. Erb 3-907007-36-0
Source of data Kat. Julius Jessel 1926/27 / Radiokatalog Band 2, Ernst Erb
Mentioned in Radio-Umschau (RU, 68) (Heft 14, vom 5.April 1925)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Schneider-Opel AG, Radiowerke; Frankfurt a.M., später Berlin
Here you find 123 models, 61 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
