TR1

TR1; Schrack Triotron; (ID = 113179) Radio TR1; Schrack Triotron; (ID = 113181) Radio
TR1; Schrack Triotron; (ID = 113182) Radio TR1; Schrack Triotron; (ID = 2408) Radio
TR1; Schrack Triotron; (ID = 113180) Radio TR1; Schrack Triotron; (ID = 113183) Radio
TR1; Schrack Triotron; (ID = 113184) Radio TR1; Schrack Triotron; (ID = 509921) Radio
TR1; Schrack Triotron; (ID = 509922) Radio TR1; Schrack Triotron; (ID = 1282269) Radio
Use red slider bar for more.

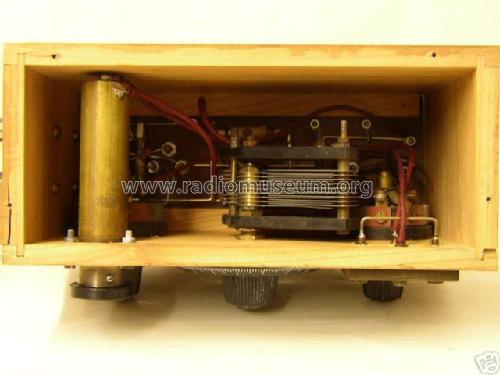

TR1; Schrack Triotron; (ID = 113179) Radio
Schrack Triotron;: TR1 [Radio] ID = 113179 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR1, Schrack (Triotron); Wien:
eBay-VK: panradio1

Country:  Austria
Manufacturer / Brand:  Schrack (Triotron); Wien
Year: 1924/1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2:
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TR1 - Schrack Triotron; Wien
Material Wooden case, TUBES VISIBLE.
Dimensions (WHD) 240 x 135 x 115 mm / 9.4 x 5.3 x 4.5 inch
Notes Spulenkoppler seitlich rechts; C-Abstimmung.
Price in first year of sale 150.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Radiowelt, Wien (RW, 51) (24*)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Schrack (Triotron); Wien
Here you find 55 models, 45 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
