• Country
• Switzerland

• Manufacturer / Brand
• Scintilla AG (SC); Solothurn

• Year
• 1954–1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 71474

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF40 EF40 EBL21 EL41 EM34 AZ21

• Main principle
• Audio-Amplification

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26 cm = 10.2 inch

• Power out
• 4 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

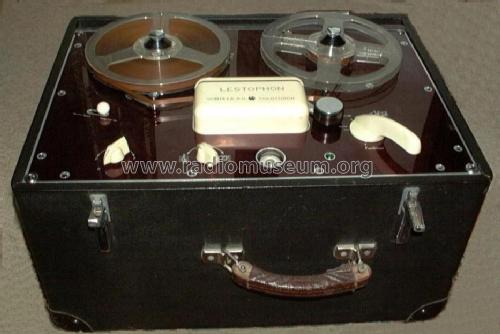

• Model: Lestophon TBG/1 - Scintilla AG SC; Solothurn

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 475 x 350 x 290 mm / 18.7 x 13.8 x 11.4 inch

• Notes
• Frequenzgang 50 - 9000 Hz, drei Motoren, Geschwindigkeit 19 cm/sek, Aufzeichnungsdauer 30 min. pro Tonspur.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 1,360.00 CHF

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alexander Küffer. See "Data change" for further contributors.
