• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 267155

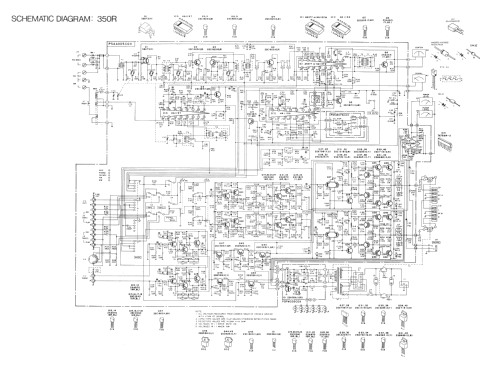

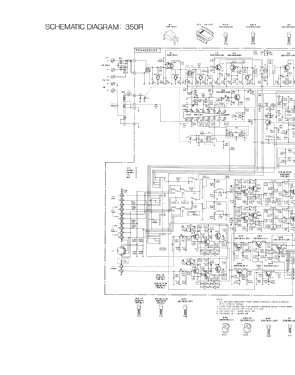

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Solid State Stereo Receiver 350R - Scott; H.H.; Maynard,

• Shape
• Book-shelf unit.

• Notes

• Scott Solid State Stereo Receiver Model 350R.

  Tuning range: FM, MW
  Power output: 40 watts per channel min. RMS into 8Ω (stereo) from 20 - 20000 Hz, 0.06%THD
  MPX Filter, High Filter
  Bass- & Treble Control
  Two Tpe Monitors
  PLL MPX Demodulator
  Signal Strength and Center Channel Tuing Meter
  Wooden Side Panels

  See also the Stereo Receiver Scott 350RL with additional LW range.


• Price in first year of sale
• 400.00 USD

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
