821DM Ch= 9043
Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Year
- 1954 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 371329

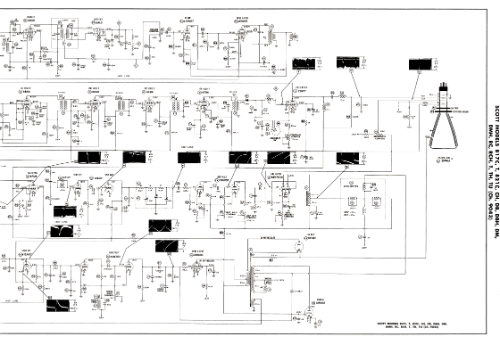

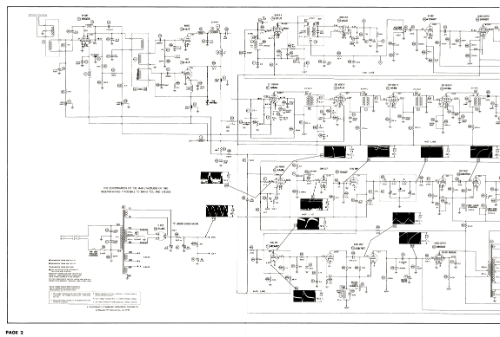

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6BQ7 6J6 6BA6 6AU6 6CB6 6CB6 12BY7 6AU6 6AU6 6AL5 12AX7 6V6GT 12AU7 6SN7GT 6SN7GTA 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 21FP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 821DM Ch= 9043 - Scott Radio Labs.E.H.,
- Shape
- Tablemodel, with any shape - general.
- Notes
-

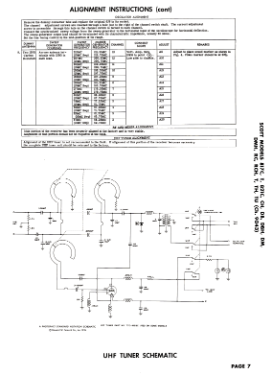

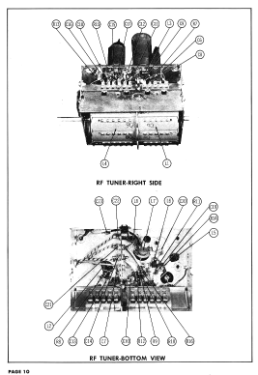

SCOTT model 821DM is a 21” b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 9043, VHF-tuner TT-10014, UHF-tuner TTC-10015C and picture tube 21FP4A.
Tube in UHF-tuner not specified.
- Literature/Schematics (1)

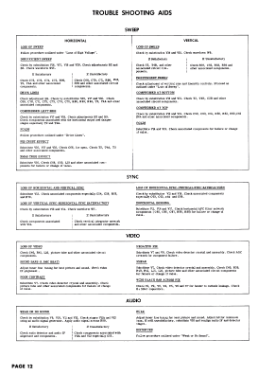

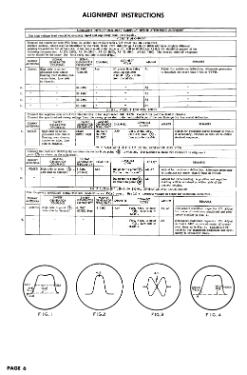

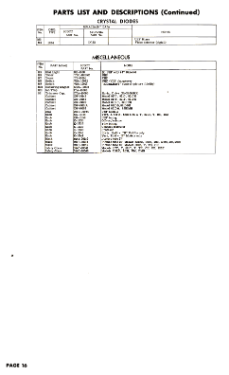

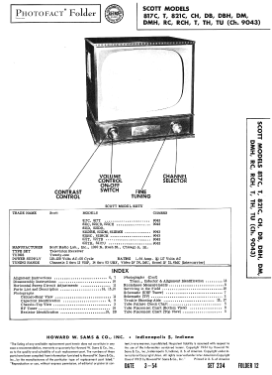

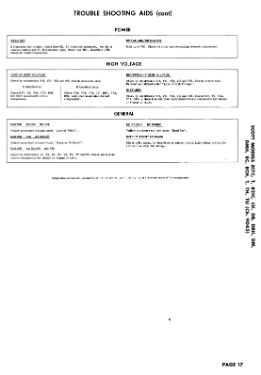

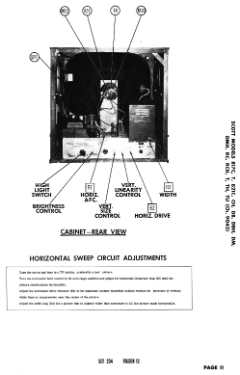

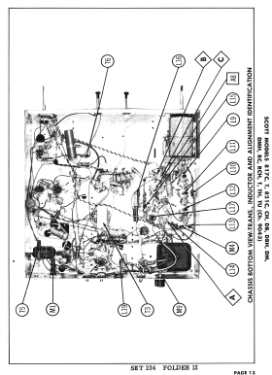

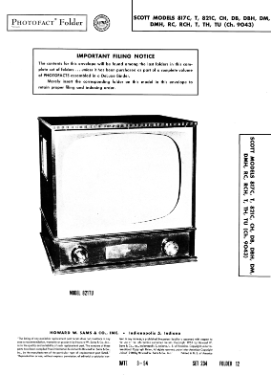

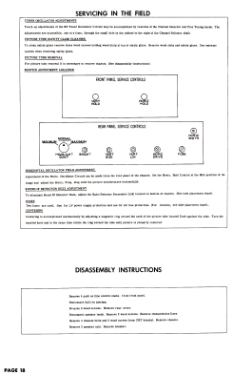

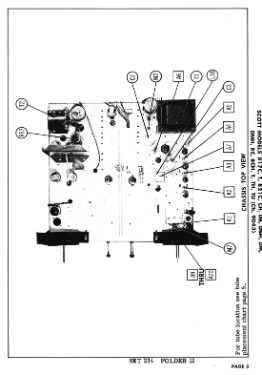

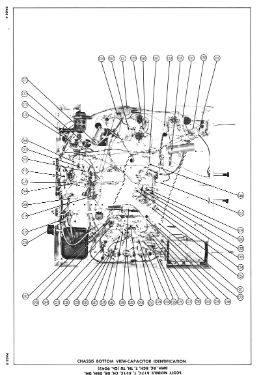

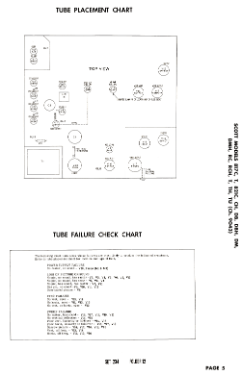

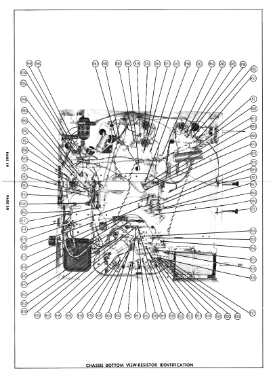

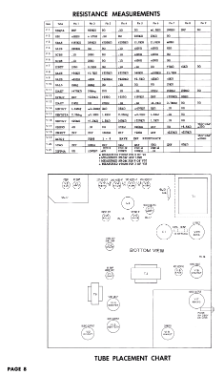

- Photofact Folder, Howard W. SAMS (Set 234,folder 12, dated 3-54)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
