RBO-2 CZC-46225

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 771193) Military

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 1949783) Military

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 1949784) Military

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 1949785) Military

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 1949786) Military

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 1949787) Military

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 1949788) Military

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 1949789) Military

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 1949790) Military

RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 1949791) Military
RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 747990) Military RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 747992) Military
RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 747993) Military RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 373057) Military
RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 373058) Military
Use red slider bar for more.
RBO-2 CZC-46225; Scott Radio Labs.E.H (ID = 747990) Military

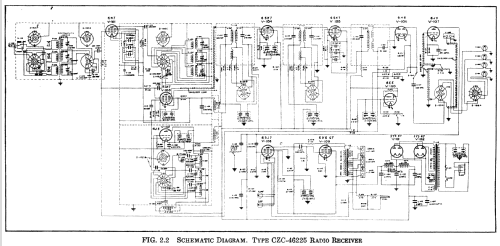

Scott Radio Labs.E.H: RBO-2 CZC-46225 [Military] ID = 747990 500x364
Select picture or schematic to display from thumbnails on the right and click for download.
For model RBO-2 CZC-46225, Scott Radio Labs.(E.H., Transformer); Chicago (IL):
eigene Aufnahme: 1998 San Francisco in Submarine USS Pampanito SS383

Country:  United States of America (USA)
Manufacturer / Brand:  Scott Radio Labs.(E.H., Transformer); Chicago (IL)
Year: 1942 Category: Military Equipment
Valves / Tubes 12: 6K7 6J5 6SA7 6SK7 6SK7 6H6 6J5 6SJ7 6V6GT 6E5 5Y3GT 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 125 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RBO-2 CZC-46225 - Scott Radio Labs.E.H.,
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 20.5 x 13.7 x 18.5 inch / 521 x 348 x 470 mm
Notes Coverage three bands: 530 - 1.600 kHz, 5,55 - 9,55 MHz, 9,2 - 15,60 MHz, 600 ohms audio out, Low radiation receiver. Variations: RBO, RBO-1, RBO-2, RBO-3, SLR-12, SLR-12A, SLR-12B.
Source of data E.H.Scott Radio Collectors Guide (1925-1946)
