RCH CZC-46209

• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott Radio Labs.(E.H., Transformer); Chicago (IL)

• Year
• 1943

• Category
• Military Receiver

• Radiomuseum.org ID
• 118899

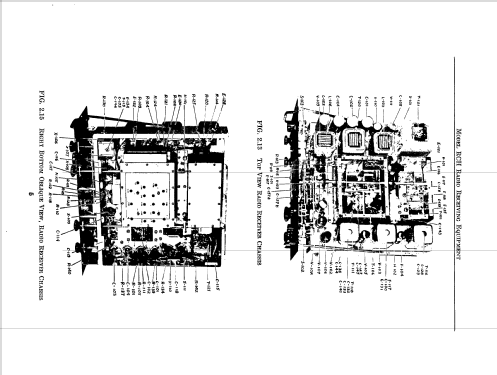

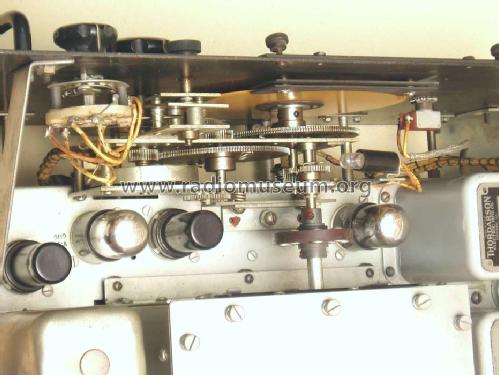

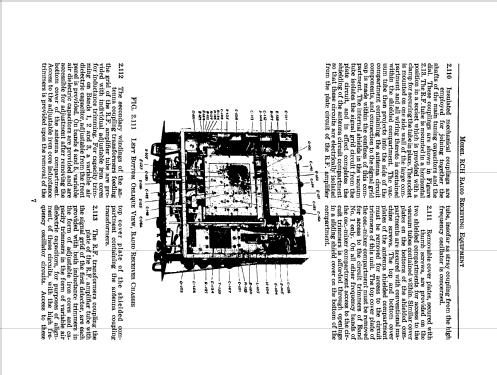

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6K7 6J5GT 6SA7 6SK7GT 6SK7GT 6SJ7 6H6GT 6SQ7GT 6H6GT 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 585 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: RCH CZC-46209 - Scott Radio Labs.E.H.,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 21 x 13.9 x 29.8 inch / 533 x 353 x 757 mm

• Notes

• 80 - 560kHz in 2 bands, 1.9 - 24MHz in 3 bands.
  600 ohms AF out.
  Low radiation receiver.

  Electronically similar to SLR-H and SLR-F.

• Source of data
• E.H.Scott Radio Collectors Guide (1925-1946)

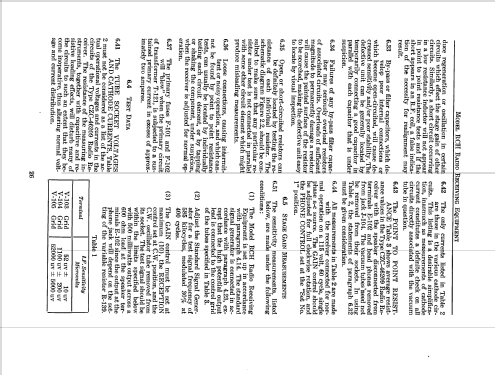

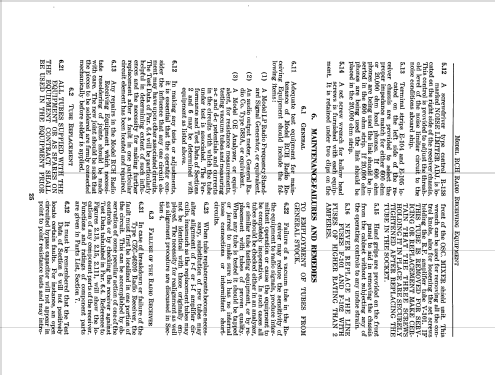

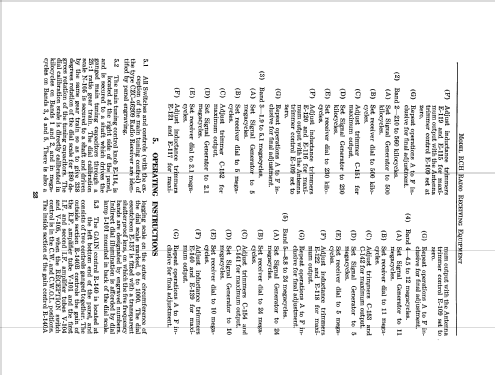

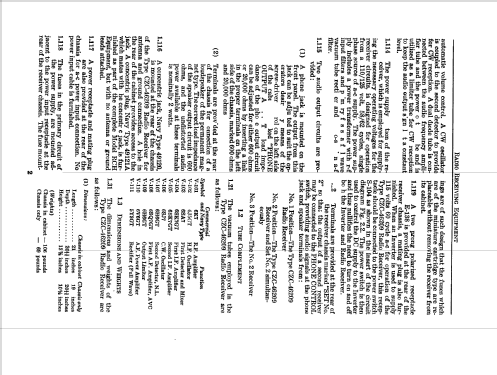

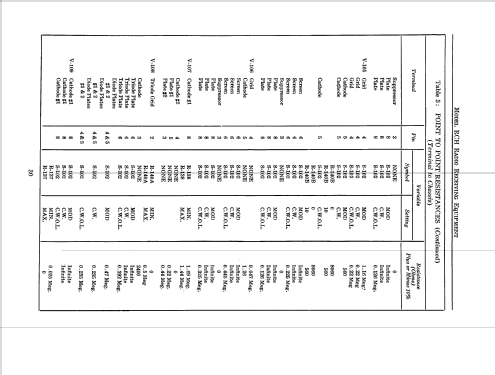

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
