ST-100

ST-100 ; Scott - Taggart (ID = 942500) Kit
ST-100 ; Scott - Taggart (ID = 1552771) Kit ST-100 ; Scott - Taggart (ID = 1544225) Kit
ST-100 ; Scott - Taggart (ID = 1545250) Kit ST-100 ; Scott - Taggart (ID = 1552767) Kit
ST-100 ; Scott - Taggart (ID = 1552768) Kit ST-100 ; Scott - Taggart (ID = 1552769) Kit
ST-100 ; Scott - Taggart (ID = 942501) Kit ST-100 ; Scott - Taggart (ID = 1552773) Kit
ST-100 ; Scott - Taggart (ID = 1552774) Kit ST-100 ; Scott - Taggart (ID = 1552775) Kit
Use red slider bar for more.
ST-100 ; Scott - Taggart (ID = 1552771) Kit
Scott - Taggart: ST-100 [Kit] ID = 1552771 933x824
Select picture or schematic to display from thumbnails on the right and click for download.
For model ST-100, Scott - Taggart (Author):

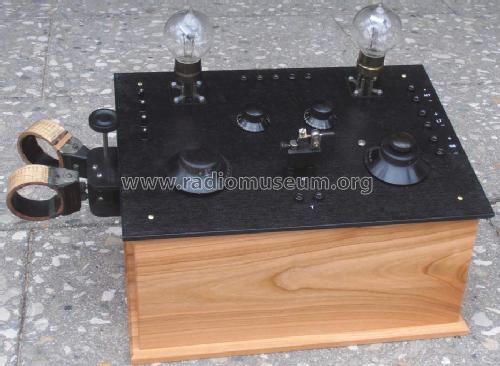

Built by KoBi.

Country:  Great Britain (UK)
Manufacturer / Brand:  Scott - Taggart (Author)
Brand

ST = Scott-Taggart
Year: 1923 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 2:
Main principle TRF with regeneration; Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: ST-100 - Scott - Taggart Author
Material Wooden case
Shape Tablemodel, slant panel.
Notes

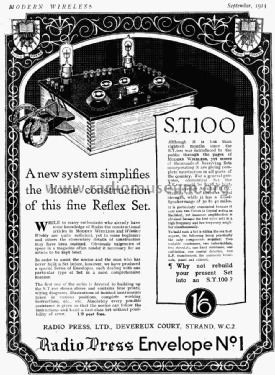

Construction envelope. First issued in Modern Wireless (spring 1923). Mentioned in Sept.1924 issue, p.424 ("Although it is less than eighteen month since the ST-100 was introduced...").

Also known in Germany (Krueger).

Mentioned in GB; Modern Wireless, Sept.1924, p.424
Literature/Schematics (1) Krüger: Selbstanfertigung...,5.Auflage, 1925

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
