Silvertone Order= 57K 7093 Ch= 101.666

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1941/1942
perfect model
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 57021
    • Brand: Silvertone

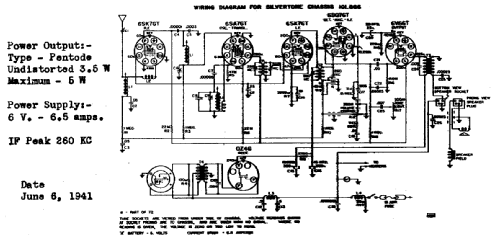

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 260 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 7 inch = 17.8 cm
  • Power out
  • 3.5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Silvertone Order= 57K 7093 Ch= 101.666 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 5.75 x 3.5 x 13.625 mm / 0.2 x 0.1 x 0.5 inch
  • Notes

  • Vibrator for +B.

  • Price in first year of sale
  • 23.95 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 14 = 1944 = before 1943
  • Literature/Schematics (1)
  • Riders 14-40, 41
