Silvertone 6072 Ch= 110.454
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56624
-
- Brand: Silvertone
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 6072 Ch= 110.454 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Notes
- Photofact see under Trade name: Silvertone.

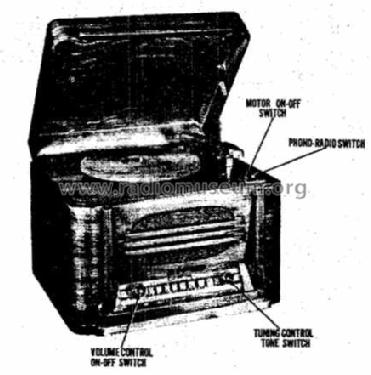

The Silvertone model 6072 with chassis 110.454 from Air-King Products. Co is an AC Operated Combination Radio-Phono with Self Contained Loop Antenna. Don't confuse with the pre WW2 model Silvertone 6072.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios (6th edition)
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (1)

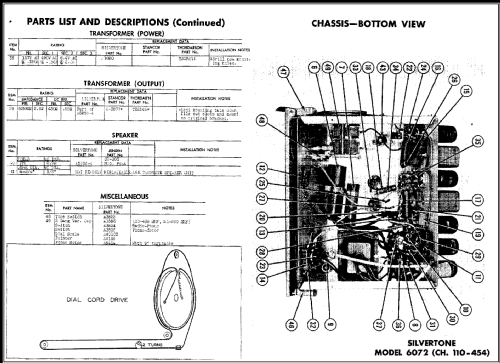

- Photofact Folder, Howard W. SAMS (Dat 2-47, set 13, folder 473-30)
