Silvertone 1404 Wilmington

Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 1323042) Radio

Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 1323043) Radio

Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 1323044) Radio

Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 1323045) Radio

Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 1323046) Radio

Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 1323047) Radio

Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 614540) Radio
Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 1290952) Radio Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 1290938) Radio
Use red slider bar for more.
Silvertone 1404 Wilmington ; Sears, Roebuck & Co. (ID = 1290952) Radio
Sears, Roebuck & Co.: Silvertone 1404 Wilmington [Radio] ID = 1290952 500x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 1404 Wilmington, Sears, Roebuck & Co.; Chicago (IL):

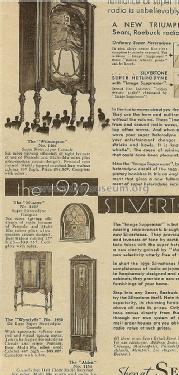

Taken from an ad from 1931 for radio season 1931/32.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1931/1932 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UY224 UY227 UY235 UY224 UY247 UX280
Main principle Superheterodyne (common); ZF/IF 175 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Silvertone 1404 Wilmington - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 0 x 39 x 0 inch / 0 x 991 x 0 mm
Notes

The Silvertone 1404 has a "Personal Tone Control. According to an ad for the Silvertone models 1404 Wilmington, 1402 Musette, 1430 Wynecliffe and 1154 Alden (a grandfather clock radio), those models were marketed in 1931 for season 1931/32. Sometimes we find only the number without name, but most probably it is the same model. We keep one only until we have the proof that there are different models for the same number and time.
See details and summaries about Sears catalogs etc.

Price in first year of sale 54.50 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

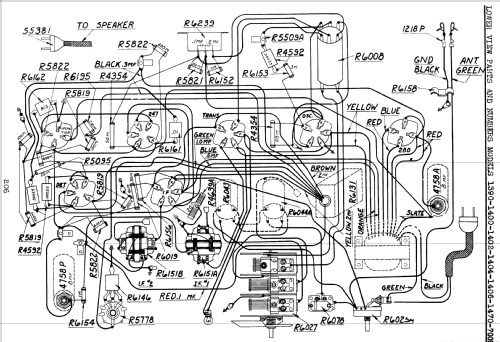

Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
Literature/Schematics (1) Riders 2-14
