Silvertone 2232 Ch=132.41501 Order= 57H 2232

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1968/1969
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96564
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 3 x C 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 2232 Ch=132.41501 Order= 57H 2232 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 8 x 7 x 3 inch / 203 x 178 x 76 mm
  • Notes

  • Sears AM Portable Transistor Radio Model Silvertone 2232.
    Model 2232 in Ivory, Orange.
    Model 2231 in White, Blue.
    Model 2230 in Ivory, Olive Green.
    Made in Hong Kong.

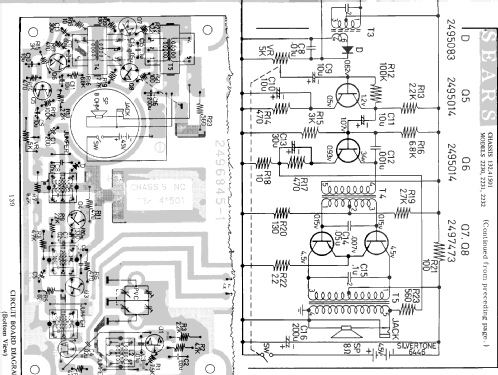

    The models 2230, 2231 and 2232 share the same chassis 132.41501 and schematic which also shows a stringing diagram. We also see a number Silvertone 6446 on the schematic

  • Price in first year of sale
  • 14.50 $
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 27, 1967-69 (last vol.)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
