Silvertone 4080 Ch= 528.54880
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 91777
-
- Brand: Silvertone

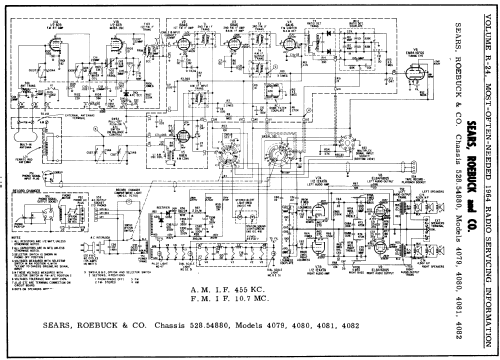

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- 6 Loudspeakers
- from Radiomuseum.org
- Model: Silvertone 4080 Ch= 528.54880 - Sears, Roebuck & Co.; Chicago
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 24, 1964
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
