For model Silvertone 4465 Order= 57D 4465 Ch= 100.151, Sears, Roebuck & Co.; Chicago (IL):

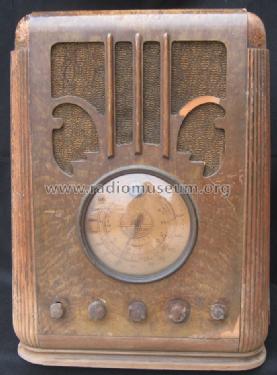

Silvertone 4465 Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1936/1937 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6K7G 6A8G 6K7G 6H6G 6G5 6F5G 6N6G 80 or 5Y3
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 105-135 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Silvertone 4465 Order= 57D 4465 Ch= 100.151 - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 16.2 x 21.3 x 10.8 inch / 411 x 541 x 274 mm
Notes

See also the low profile model 4565 for the same chassis 100.151.

Price in first year of sale 34.50 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Beitman Radio Diagrams Vol. 9, 1949
Mentioned in Riders Vol.9
Literature/Schematics (1) Machine Age to Jet Age III (Riders 9-21, 22)
Literature/Schematics (2) The Sears Silvertone Catalogs 1930-1942 (page 109, 116)
Literature/Schematics (3) Sears, Roebuck Catalogs (Silvertone) (# 173, Fall & Winter 1936/37, page 615. #174, Spring & Summer 1937, page 432.)
Literature/Schematics (4) Cathedral & Tombstone Radios (page 245.)
