• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56640

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6D6 6D6 6F5G 25L6G 12Z3

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.1 inch = 13 cm

• Power out
• 0.85 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

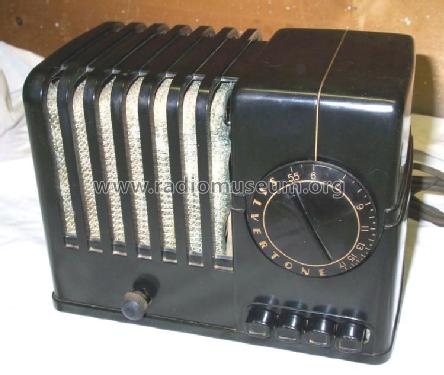

• Model: Silvertone 6102A Automatic Streamliner Order= 57L 6102A Ch= 101.526-1 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 9.75 x 7.25 x 5.75 inch / 248 x 184 x 146 mm

• Notes

• The chassis 101.526-1 from Colonial was used for Silvertone model 6102A in black, 6103A in Ivory and 6105A in Mottled Walnut. Already the earlier chassis 101.526 was used for the same cabinet and colours - but without the suffix A. The Rider's page 10-73 from June 15, 1938 shows the same schematic for all those models with or without suffix A. The first RF stage is untuned. 4 station push buttons. Broadcast reception 540 to 1730 kHz. There is no AVC. Undistorted output 0.85 watts, max. 1.5 watts. Field coil of 600 ohms resistance with 40 volts drop. The Sears catalog #178 shows on page 678 square shaped knobs for call letters, but on the photos of real sets we see round shaped knobs.

• Price in first year of sale
• 8.95 $

• External source of data
• Ernst Erb

• Source of data
• Table Top Radios Vol. 1 Stein 98

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• The Sears Silvertone Catalogs 1930-1942 (page 164)
