Silvertone Order= 57D 6301 Ch= 126.211
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1939–1941
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 56786
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 8 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Silvertone Order= 57D 6301 Ch= 126.211 - Sears, Roebuck & Co.; Chicago
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 6 x 3.75 x 8.5 inch / 152 x 95 x 216 mm
- Notes
-
Vibrator for +B. 5-Station Push Button Tuning.
- Price in first year of sale
- 25.50 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11-31, 49, 50
- Literature/Schematics (2)
- The Sears Silvertone Catalogs 1930-1942 (page 173)
- Literature/Schematics (3)

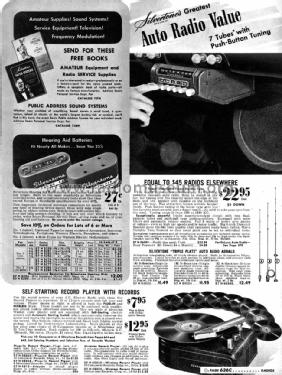

- Sears, Roebuck Catalogs (Silvertone) (# 179, Fall & Winter 1939/40, page 929. #182, Spring & Summer 1941, page 636C.)
