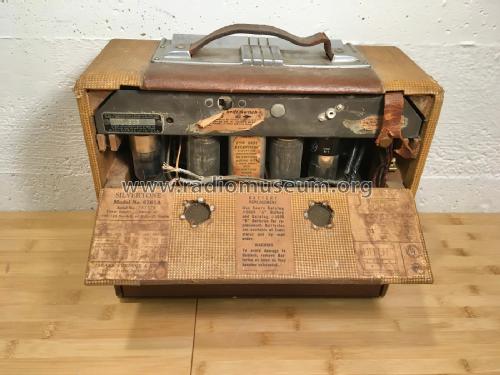

Silvertone 6761A Ch= 101.637

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56909
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 105-125V AC/DC / 90 & 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 0.3 W (unknown quality)
  • from Radiomuseum.org
  • Model: Silvertone 6761A Ch= 101.637 - Sears, Roebuck & Co.; Chicago
  • Dimensions (WHD)
  • 12 x 10.5 x 5.5 inch / 305 x 267 x 140 mm
  • Notes
  • Built in loop antenna.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
  • Literature/Schematics (1)
  • Riders 12-60
