Silvertone 8101 Ch= 101.809-3C
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 77289
-
- Brand: Silvertone
Beitman
Sams Photophact
Sams Photophact

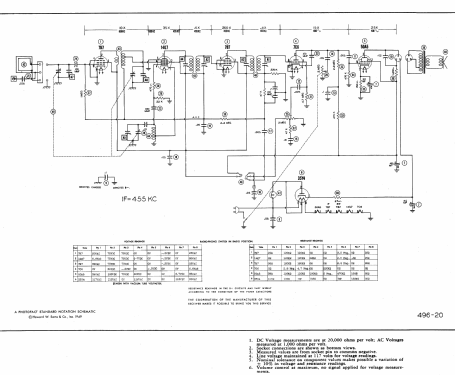

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8101 Ch= 101.809-3C - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 24.25 x 32.125 x 15.5 inch / 616 x 816 x 394 mm
- Notes
-
This is the Silvertone model 8101 from Sears, Roebuck & Co. with chassis 101.809-3C. The models Silvertone 8101, 8101A, 8101B and 8101C share the same chassis 101.809-3C. In the same chassis family 101.809 you find also the models 8083, 8083A with chassis 101.809-1A, 8084, 8084A with chassis 101.809-1B and models 7080 and 7080A with chassis 101.809-2. Probably there are even more. Therefore please becareful by uploading pictures, schematics or data.
- Price in first year of sale
- 89.95 $
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 9, 1949
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-49, 496-20, set 58, folder 20)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#197, Fall & Winter 1948/49, page 871. #198, Spring & Summer 1949, page 625.)
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
